Pack Signalink-KX3 pour radio Elecraft avec prise micro KX3 Agrandir l'image
Tigertronics

SIGNALINK-PACK-SLUSBKX3-1519

Neuf

U.S.A

Pack Signalink-SLUSB-KX3 pour radio Elecraft KX3 KX2 avec prise micro jack 3.5mm

rating Aucun avis pour le moment

The Signalink-SLUSB-KX3 interface pack is compatible with Elecraft radios equipped with a 3.5mm microphone jack like the Elecraft KX2, KX3.

    Low noise USB sound card
    Quick and easy installation with jumper
    RX and TX adjustment from the front panel
    Supports ALL digital modes such as SSTV, RTTY, Packet, PSK, ROS, FT8, FT4, JS8, ACARS, etc.
    Complete RF isolation between the computer and the radio
    Transmit Audio output and external speaker jack

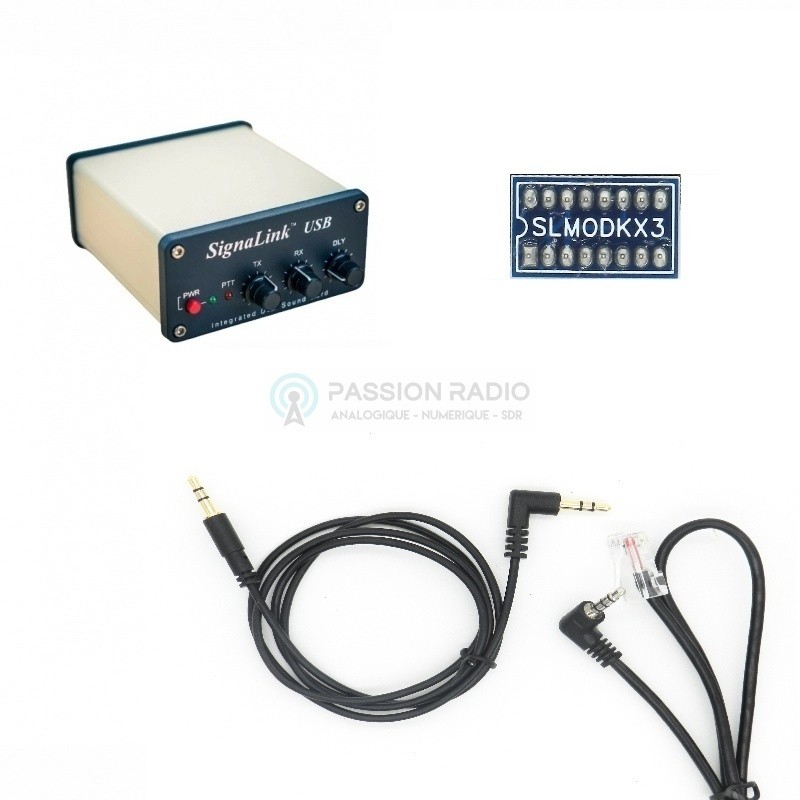

The package includes: The Signalink interface, the SLCABKX3 cord to connect the radio to the interface and the SLMODKX3 jumper to be installed inside the box, 1 x 2.5m USB cable, 1 x mono jack cable, 6 x 24 AWG pre-cut and stripped wires, 1 x 3/32" Allen key, rubber feet, 1 x English manual.

Note: This interface does not allow the control of the frequency (CAT control) on the radio used, it allows to switch to PTT and to send a signal to the radio and to receive it, thanks to the USB peripherals created.

Plus de détails

179,00 € TTC

149,17 €

HT

au lieu de 192,80 €

En stock

   1 pièce disponible, expédié de France en 24-72h.

Contenu du pack

  • Interface radio et carte son Signalink USB de Tigertronics
    145,00 € TTC

    Référence: TIGER-SIGNALINK-BOITIER-1455

    1 x Interface radio et carte son Signalink USB de Tigertronics

    L'interface radio Signalink USB de Tigertronics est une carte son USB qui permet de recevoir et émettre depuis un ordinateur pour pratiquer les modes digitaux et numériques tels que SSTV, RTTY,

    145,00 € TTC
  • Jumper Signalink SLMOD-KX3 pour Elecraft
    12,90 € TTC

    Référence: SIGNALINK-JUMPER-SLMODKX3-1491

    1 x Jumper Signalink SLMOD-KX3 pour Elecraft KX3 et KX2

    Ce module de jumper est compatible avec notre câble radio Elecraft KX3 qui fonctionne avec les radios KX2 et KX3 (p/n SLCABKX3, SLUSBKX3, ou SL1+KX3). Le câble radio compatible avec ce module jumper

    12,90 € TTC
  • Cordon radio Signalink SLUSB-KX3 pour Elecraft
    34,90 € TTC

    Référence: SIGNALINK-CABLE-SLCABKX3-1492

    1 x Cordon radio Signalink SLCAB-KX3 pour prise micro Elecraft KX3 et KX2

    Le câble radio p/n SLCABKX3 est conçu pour fonctionner avec l'interface radio de la carte son USB SignaLink ainsi que l'ancien modèle SignaLink SL-1+Ce câble radio est compatible avec le KX2 et le KX3

    34,90 € TTC

Télécharger

Guide cable jumper Signalink FR

Guide en français pour choisir le bon cable radio et cavalier (jumper) selon la marque et le modèle du poste radio utilisé. 177.6k

Guide cable jumper Signalink EN

Guide en anglais pour choisir le bon cable radio et cavalier (jumper) selon la marque et le modèle du poste radio utilisé. 666.13k

Manuel signalink USB (FR)

Manuel en français et guide d'utilisation Signalink USB 1.48M

Manuel signalink USB (EN)

Manuel en anglais et guide d'utilisation Signalink USB. 745.98k

Fiche technique

  • Alimentation : Port USB (connecteur Male B)
  • Consommation : ~140mA en transmission, ~80mA nominal
  • Température de fonctionnement : -30°C à +60°C
  • Réponse en fréquence audio : 200 Hz - 4000 Hz à 600 ohms
  • Taux d'échantillonnage : 16 Bits, jusqu'à 48Khz
  • Système d'exploitation : Windows 98SE, ME, 2000, XP, Vista, Windows 7, 8.x et Windows 10
  • MAC OS 9.1, MAC OS X 10.00
  • Entrée/sortie radio Z : 600 Ohm
  • Délai Auto-PTT™ : 30 ms à 3 secondes
  • Circuit PTT : Relais, valeur nominale - 1A @ 24VDC (max), 0.5A @ 120VAC (max)
  • Connexion radio : Audio TX, Audio RX, PTT, GND et RJ-45 femelle
  • Audio RX/haut-parleur : Jack mono 3,5 mm mono
  • Boîtier : Aluminium extrudé, revêtement en poudre
  • Dimensions : 40 x 81 x 91 mm
  • Poids : 187g

Postes compatibles

Ce pack Signalink est compatible avec les postes radios ci-dessous :

Elecraft

KX2

KX3
